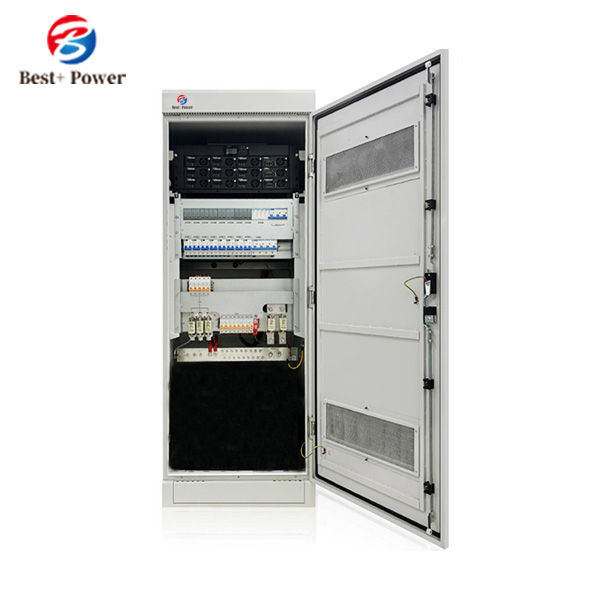

48V 36kW Hybrid Solar Rectifier System

Description

48V 36kW Hybrid Solar Rectifier System
Product Description
48VDC 600A Hybrid Solar Rectifier System is an off-grid type PV Solar DC Power System, which adopts advanced MCU microprocessor control and Max Power Point Tracking (MPPT) technology. The solar hybrid Rectifier System solution is applicable to areas with off/poor grid power. The solar Hybrid rectifier System is designed to operate as an integral component in telecommunication power system. A Hybrid Solar Rectifier system converts alternating current (AC) / PV Solar Energy DC / Battery DC to direct current (DC) and provides the power necessary to charge batteries. With a focus on continuously improving the total cost of ownership, Best Plus Power’s rectifiers, combined with advanced control and monitoring features, help to reduce both capital and operational expenditure. Our rectifier systems boast excellent power density while fulfilling space and weight requirements.
They leave plenty of room for other equipment and create savings in packaging and transportation costs. In addition, their high efficiency lowers total energy consumption and reduces carbon footprint.
The embedded communication power supply system (Rectifier System) is suitable for small program-controlled switches, access networks, transmission equipment, mobile communications, satellite communications ground stations, microwave communications power supply, and can also be used for power supply for other communications equipment. Under normal circumstances, various parameters of the rectifier module and power distribution unit are controlled by the monitoring module, and work according to their predetermined parameters or user commands. If the mains fails, the system will be powered by the battery at this time. As the battery discharges, the battery terminal voltage begins to drop. When the battery voltage is lower than the Set Voltage dc (Alarm Value can be settable) battery low-voltage alarm point from monitor, the monitoring module reports an alarm. Signal, directly close the load output, the whole machine does not work. When the external mains power is restored, the system resumes normal operation.
The Hybrid Solar power core has integrated battery distribution, DC load distribution, solar chargers with PV connection panel. The Hybrid Solar power core is flexible and can easily be upgraded to meet changing demands. Solar Autonomous site is powered from PV panels and with a combination of cycling batteries supply all required power during the whole day.
Telecom Hybrid System All-in-one Solution for Rectifier Communications and Solar Energy
A typical hybrid Solar site is powered from PV panels in addition to Gen-set and/or mains connection and Storage Battery Pack System.
Suit for Hybrid Solar Rectifier System Solutions: Solar PV+ Grid AC Solution, Solar PV+ Grid AC+Battery Solution, Solar PV+ Battery Solution, Solar PV+ Grid AC+Battery+Generator Set Solution, and other Custom Hybrid Solar Solutions.
Ask for custom solutions: export@bestpluspower.com

48V 36kW Hybrid Solar Rectifier System
Product Feature
1) The rectifier module adopts active power factor compensation technology, and the power factor value reaches 0.99.
2) The solar module has maximum power point tracking function. The maximum power point tracking accuracy is over 99.5%
3) The rectifier module adopts full-bridge soft-switching technology, and the efficiency is up to 96%.
4) The maximum efficiency of the solar module is over 97%
5) The rectifier module adopts non-damage hot-swappable technology, plug and play, and the replacement time is less than 1min.
6) Networked design, providing multiple communication interfaces (such as RS485, dry contact), flexible networking, real-limited local and remote monitoring, unattended.
7) Lightning protection design for AC and DC sides, suitable for thunderstorm areas.
8) Support fault protection and fault alarm functions.
9) Friendly operation and maintenance can be installed against the wall, effectively saving space.
10) Ultra low radiation. Adopt advanced electromagnetic compatibility design.
11) Wide MPPT Range, Wide Temperature Range, Modular and Scalable Design, Excellent Performance, Equipped with Intelligent Controller, Combined with highly efficient Rectifier modules and Solar Converter modules, Compliant with Global Standards
Ask for Quote: export@bestpluspower.com

48V 36kW Hybrid Solar Rectifier System
Product Application
Program Control Exchange Remote Sites
Access Network Remote Sites
transmission device Remote Sites
Mobile communication Station
Satellite communication ground station
Microwave communication power supply Base Station

48V 36kW Hybrid Solar Rectifier System
Product Parameter
